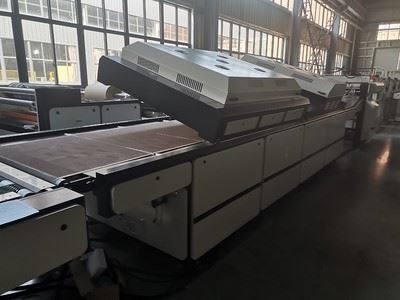

Automatic Paper UV Varnishing Machine, SA-1200
1. Description:
This machine is a paper surface UV glazing equipment suitable for various types of paper with range of 250-600g/㎡. While treated by this machine, not only the gloss of the paper, but also the moisture and abrasion-resistance of the printed products is greatly improved.
2.Working process:
Paper automatic feeding,Water base/UV oil varnishing, IR/UV drying, automatic collecting.
3.Standard Equipment:
a) Pre-staking unit
b) Automatic paper feeder
c) Coating system
d) IR drying and UV drying system
e) Cooling fans
f) Automatic paper collector
4. Main technical specification:
Model |
SA-1200 |
Length of roller |
1250mm |
Max. Working speed |
80m/min |
Suitable paper thickness |
250-500g/m2 |
Max paper size |
1150x900mm |
Power |
380V/3P/50Hz |
Motor power |
3.5KW |
Infrared heating power |
28KW |
Ultraviolet heating power |
3×8Kwor2×8Kw |
Overall dimension |
10800×1800×1750mm |
Machine weight |
3500Kg |
