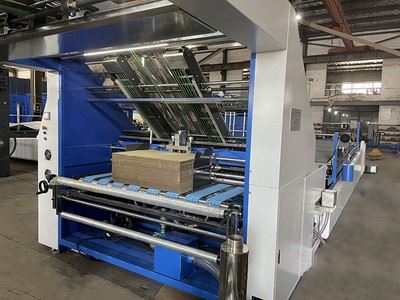

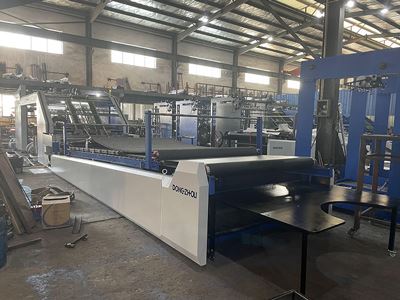

High Speed Automatic Carton Laminating Machine FMZ-1260 1450 1700

High Speed Automatic Carton Laminating Machine FMZ-1260 1450 1700

Features of High Speed Automatic Carton Laminating Machine:

1. Special front location with high accuracy
2. Use overlapping feeding style, making paper conveying more stable
3. Adopting cutting-edge PLC tracking technology, it can automatically adjust the relevant parameters according to the size of paper, keeping the machine in the best state
4. Bottom paper feeding adopts rotary telescopic frame, more suitable for warped corrugated paperboard.
5. The feeder equips pre-feeding device to reduce the stopping time of machine and improve productivity.
6. Siemens PLC control system adopted can simplify electric equipment's structure for stable and reliable control
7. Adopt frequency-conversion speed regulation system for infinitely variable speed without shutdown
8. Automatically display the state of operation
9. With fault alarm function

Application of High Speed Automatic Carton Laminating Machine:
Adopting surface paper and bottom paper automatic feeding system, this laminator is ideally suited for automatic pasting of color printing paper and corrugated board

Technical Specification of High Speed Automatic Carton Laminating Machine:
Model FMZ—1260 FMZ—1450 FMZ—1700
Max laminating size 1260×1300mm 1450×1300mm 1700×1500mm
Min laminating size 400×400mm 400×400mm 400×400mm
Laminating precision ±1mm ±1mm ±1mm
Laminating speed 6000sheets/h 5000 sheets/h 4000 sheets/h
Paper thickness 250-450g/㎡ 250-450g/㎡ 250-450g/㎡
Type of bottom paper (corrugated board) A.B.C.D.E≤7mm A.B.C.D.E≤7mm A.B.C.D.E≤7mm
Total power 15kw 15kw 15kw
Overall dimensions(LxWxH) 14.20×2.22×2.68m 14.20×2.22×2.68m 14.20×2.22×2.68m
