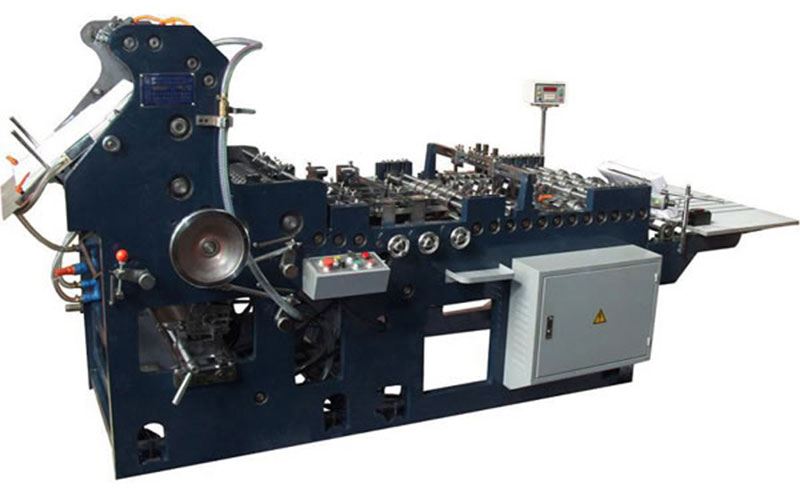

Automatic Envelope Making Machine (Pocket) , ZF490B

Automatic Envelope Making Machine (Pocket)
Inquiry Form

The automatic envelope making machine ZF490B is specially developed for pocket envelope. The production process of the envelope making machinery includes raw paper feeding, folding, gelatinizing, second folding, deviation rectifying, bottom cap folding, and top cap folding. The counting device and automatic paper separating device are available with this high speed envelope making equipment.

Technical Parameters of Automatic Envelope Making Machine
Max. working speed 12000pcs/h
Thickness of paper 70-150g/m2
Envelop specification Max.: 260×400mm
Min.: 100×160mm
Motor power 2.2kW
Power of vacuum pump 2.5kW
Weight 2300kg
Overall dimension 3200×1100×1500mm
