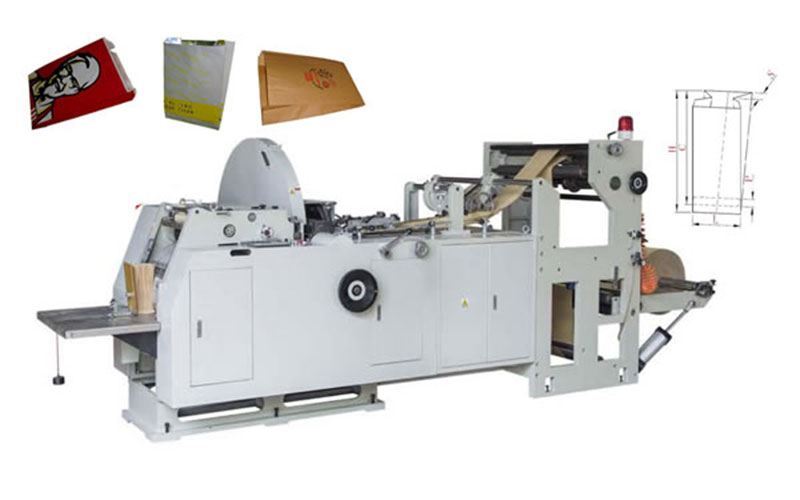

Automatic Food Paper Bag Making Machine

Descriptions of Automatic Food Paper Bag Making Machine
This automatic food paper bag making machine can make paper bags at a stroke, from roll paper folding, through tube forming, cutting, gluing, bottom folding, bottom gluing to final paper bag making. It features easy operation, low power consumption and high working efficiency. It is ideal for producing food bags like bread bags, KFC bags and Mcdonald's bags.

Features of Automatic Food Paper Bag Making Machine
1. Suitable for making food bags using 30-80gsm paper.
2. With a man-machine touch screen interface, the automatic food paper bag making machine can control bag length easily.
3. PLC programmable servo motor control system.
4. Equipped with an accurate photocell system for printed mark tracking.
5. Color mark error stopping system is available.
6. Automatic oil lubrication system is available.

Main Technical Specifications of Automatic Food Paper Bag Making Machine
Model LMD-400
Cutting length 150-400mm
Bag length 140-390mm
Bag width 80-250mm
Gusset depth 10-50mm
Standard flap 12-17mm
Speed 100-300pcs/min
Paper thickness 30-80gsm
Power 6kw
Total weight 3500kg
Overall dimensions 4400×1650×1850mm
