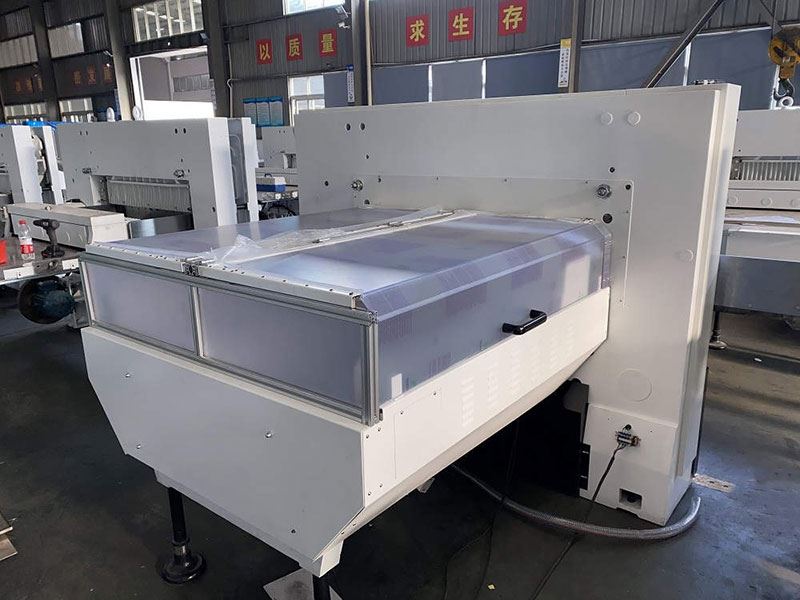

Programmable Paper Cutting Machine

The programmable paper cutting machine of YPW-T series is configured with a Panasonic frequency converter and a 7.8 inch display. The data resolution rate reaches up to 0.01mm, and the memory capacity is 100 groups (200cuts/group). In addition, our paper cutting equipment has the following features.

1. The paper feeding speed is 5-12 meters per minute.
2. Simple and practical, the programmable paper cutting machine supports the functions like memory operation mode, programme insertion, equal cutting, paper trimming, counting, etc.
3. Employing ball screw and double linear guide rail, the programmable paper cutter offers high cutting accuracy.
4. The secondary enveloping worm gear speed reducer effectively improves the working efficiency.
5. The automatic paper cutting machinery has stable performance, by virtue of the electrical apparatus element from France, Japan, and Korea, as well as the imported hydraulic sealing element.

Specification of Programmable Paper Cutting Machine
Model 92 78 115 130 137 164
Cutting width (cm/inch) 92/36.25 78/30.71 115/45.25 130/51.20 137/54 164/64.57
Cutting height (without false clamp plate) (cm/inch) 13/5.13 12/4.72 16.5/6.50 13/5.13 16.5/6.50 16/6.3
Cutting length (cm) 105/41.34 78/30.71 118/46.46 130/51.20 140/55.12 164/64.57
Total power (kg) 3 3 4 4 4 5.5
Weight (kg/lb) 2500/5500 2100/4630 3800/8360 3500/7700 4500/9900 6200/13669
Machine width with sideway (cm/inch) 218.5/86.02 210/82.68 274.7/108.15 285/112.2 296.1/116.57 322/126.8
Machine length (cm/inch) 202/86.61 200/78.74 262/103.15 278/109.45 285/112.20 283/111.4
Machine height (cm/inch) 156//61.4 150/59.06 168.5/66.34 160.8/63.31 169.1/66.57 165/65
Table height (cm/inch) 90/35.44 930/366.14 90/35.44 90/35.44 90/35.44 89/35
Clamp pressure (Min.) (Max.) 1500 50000 1500 50000 1500 50/00 1500 50000 1500 50000 1500 50000
Min. cutting width (without false clamp plate) (with false clamp plate) (cm/inch) 2.5/1 7.5/2.95 2.5/0.99 7.5/2.95 3/1.18 8.5/3.35 3/1.18 8.5/3.35 3/1.18 8.5/3.35 3/1.18 8.5/3.35
Cutting speed (times/min) 45 45 45 45 45 42
Packaging size (L×W×H) (cm/inch) 244×145×180 96.08×57.09
×70.88
200×210×150 78.74×82.68
×59.06
275×50×200 108.25×59.06
×78.75
285×152×180 112.99×59.84
×70.88
298×152×200 117.32×59.84
×78.25
315×160×230 124×64×90.55
Voltage(V) 380±5% 380±5% 380±5% 380±5% 380±5% 380±5%
