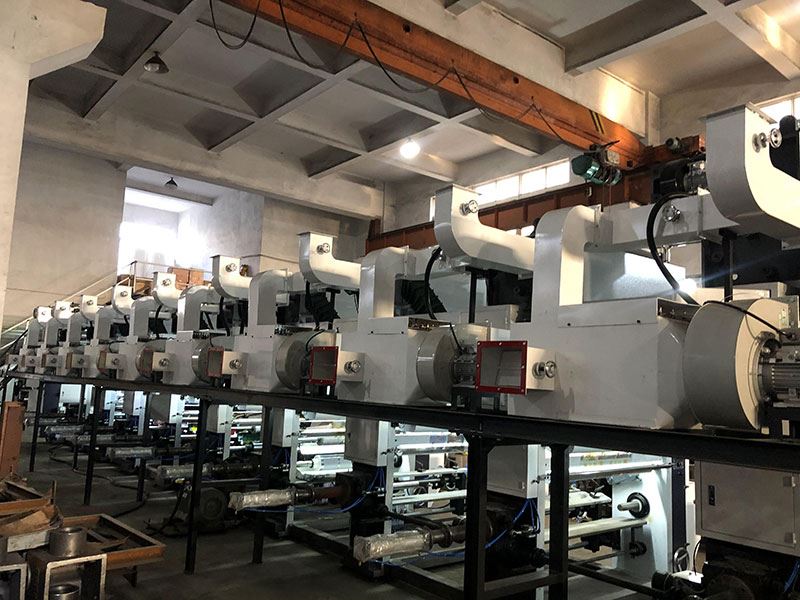

YAD-A2 Automatic Register Gravure Printing Machine

YAD-A2 Automatic Register Gravure Printing Machine YAD-A2 800/1100

Features of YAD-A2 Automatic Register Gravure Printing Machine:
1. Three-motor tension control in closed loop
2. Computerized register, pneumatic scraper, frequency control
3. Stable tension, accurate register, high efficiency, easy operation
4. Double-air shaft in rewinding, high speed automatic material cutting and roll changing without stopping the machine
5. Double-air shaft in unwinding, semi-automatic cutting and roll changing
6. Air cooling device
7. Water cooling device for option
8. Float roll type double-cylinder embossing
9. Shaftless imposition
10. Double-layer cycle hot-air oven for drying
11. Centralize exhaust device
12. Computer register system (brand chosen by clients)
13. Still image system (brand chosen by clients)
14. Obverse and inverse double-side printing device can be addled upon request
15. Film tension adopts three-motor synchronous system (main motor, unwinding traction, rewinding traction)
16. Five-motor or seven-motor tension synchronous control system and obverse and inverse double-side computer register mechanism are also available to meet customers' requirements.

Application of YAD-A2 Automatic Register Gravure Printing Machine:
Gravure printing machine, a type packaging converting machinery, is suitable for printing many kinds of roll materials, for example, plastic film and paper sheet

Technical Specification of 8-Color Computerized Automatic Register Gravure Printing Machine:
Model YAD-8800A2 YAD-81100A2
Max. printing width 800mm 1100mm
Paper core diameter 76mm 76mm
Unwinding roller diameter 600mm 600mm
Printing cylinder diameter 110-300mm 110-300mm
Color register precision ±0.12mm ±0.12mm
Max. working speed 150m/min 150m/min
Overall dimension 14500×2150×2850mm 14500×2450×2850mm
Total power 135kW 155kW
