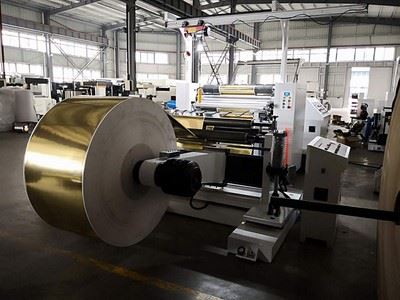

Peeling Rewinding Machine, DBL-1200

As the name implies, the peeling rewinding machine DBL-1200 is extensively used for peeling, cutting, and rewinding of laser transfer paper for golden or silver paperboard. The peeler & rewinder adopts PLC for central computer control, HMI, vector controlled variable frequency speed controller, automatic tension control device, and centre shaft rewinder. In addition, the peeling rewinding equipment is well received because of the following features.

1. The peeling rewinding machine adopts hydraulic system for material loading and unloading.
2. In addition, this product is also designed with other functions such as automatic deviation rectification, automatic counting, automatic acceleration and deceleration, etc.
3. The cutting rewinding machine has nice appearance, compact structure, high automation, and convenient operation.
4. This peeling rewinding machine is an ideal choice for peeling, slitting, and rewinding.

Technical Parameters
Web width 500-1200mm
Max. unwinding diameter 1600mm
Max. rewinding diameter 1600mm
Max. peeled film rewinding diameter 600mm
Film weight 500-1200mm
Paper weight 50-300g/m2
Peel and rewind speed ≤200m/min
Unwinding and rewinding lock shaft Air expansion shaft
Voltage AC 380V±10%
Total power 35kW
Dimension 5500×4000×2600mm
