  3. Automatic Water Based Film Laminating Machine

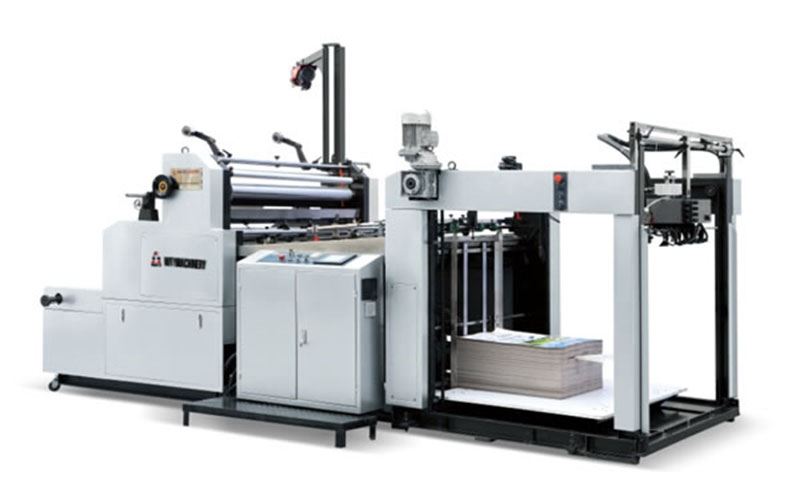

Automatic Water Based Film Laminating Machine, QZFM Series

Features of Automatic Water Based Film Laminating Machine, QZFM Series:
1. A kind of new semi-automatic pneumatic film laminator
2. Adopt pneumatic lift device and pressure-feed mechanism, easy and quick to adjust the pressure
3. Be suitable for water-solvable environment-friendly glue and BOOP film, with such characteristics as high transparency, strong stereoscopic effect, good agglutination, non-toxicity, and non-pollution, without snow-flower spot or bubble, and so on.
4. Adopt imported transducer and transformer, stepless speed regulation
5. Equip roll heating and infrared ray solid-state lamp
6. Perform the functions of paper-lacking stopping, sheet counting, auto film splitting, glue supplying, glue stopping and film holing

Application of Automatic Water Based Film Laminating Machine, QZFM Series:
This kind of packaging converting machinery is widely used for sheet laminating of printed packaging such as text books, magazines, covers, calendars, hand-bags, gift boxes, wine boxes, and more.

Technical Specification of Automatic Water Based Film Laminating Machine, QZFM Series:
Model QZFM-1200C QZFM-1000C
Max paper width 1150 mm 950 mm
Max. paper weight 500g/ m2 500g/ m2
Min. paper weight 80g/ m2 80g/ m2
Laminating speed 0-50m/min 0-50m/min
Power supply 220V 220V
Motor power 3.15kw 3.15kw
Weight 1.7kg 1.7kg
Overall Dimensions 2800 x1800 x1650 mm 2700 x1600 x1650mm
