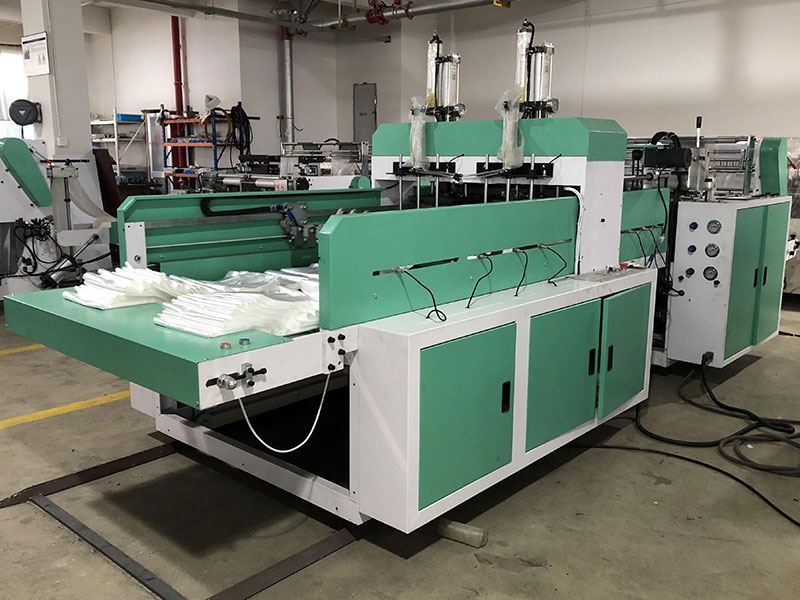

QF-450 High Speed Plastic Bag Making Machine

QF-450*2 Fully Automatic High-speed Bag Making Machine

Usage:
The machine for high-density polyethylene (HDPE), low density polyethylene plastic film production of shopping bags (T shirt bag). It is use for producing vest bags with printing.The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely.The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller. It adopts advanced computer to adjust length more freely and accurately.

Technical parameter:
Model 450*2
Width of bag-making(mm) 200-400mm*2
Length of bag-making(mm) 350-600mm*2
Speed of bag-making(pc/min) 200pcs/min*2
Thickness of bag-making(mm) 0.01-0.05mm
Air compressor 7.5HP
Power of motor(kw) 8.5kw
Weight(kg) 2200kgs
Outline dimension(L*W*H)mm 6000*1550*1700
