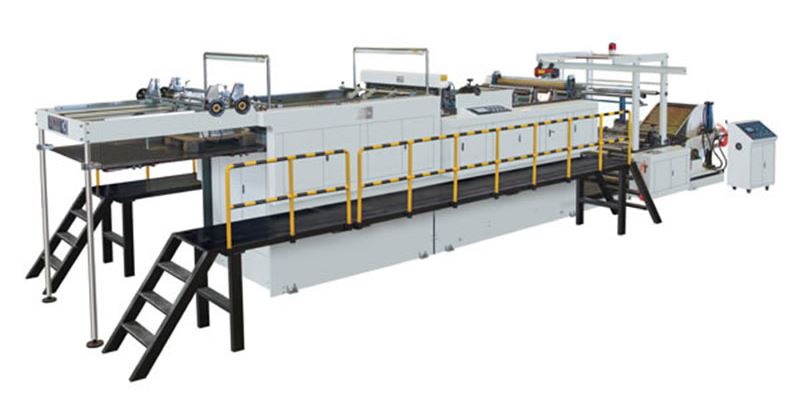

Computerized Sheet Cutting Machine (with Mark Tracking Unit) HQD-1100CS-3
The computerized Sheet Cutter is suitable for width-ways cutting and length-ways cutting (even peeling of) the reel type material into sheet type. The materials could be golden and silver paperboard, plain 'rainbow' paper, holography paper, white cardboard, craft paper, or plastic sheet, etc.
Features
- Center computer control (PLC), person-machine interface operation, dynamic display.
- Imported servo driving system.
- German automatic identifying-markings photoelectric switch to ensure cutting accuracy.
- With advanced control mode, this machine centrally controls the speeds of the main motor, servomotor and feeding motor through computer so as to achieve the purpose of synchronous operation.
- High-precision cutting, high speed, convenient charging, and orderly heaping etc.
Specification
| Model | HQD-1100CS-3 |
| Max. cutting width | 1100mm |
| Max. unwinding diameter | 1600mm |
| Cutting length | 450-1400mm |
| Max. cutting speed | ≤60m/min |
| Cutting accuracy | ±0.15-0.2mm |
| Stacking height | 1200mm |
| Applicable paper | 70-350g/m2 |
| Power | 15kW |
| Overall dimensions | 11000×3100×2200mm |
-
