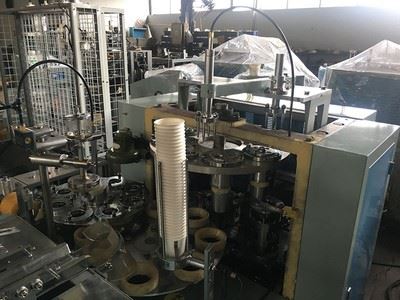

Automatic Paper Cup Forming Machine, JBZ
This machine is an automatic machine with multi-running positions. It can perform all the processes of paper-feeding, sealing, oiling, bottom-punching, heating, knurling, edge rolling, and discharge. Functions like photo-electric detection, failure alarm and counting are provided by it.
Application
- JBZ-S is suitable for double side PE coated paper cups.
- JBS-A is ideal for single side PE coated paper cups.
Specification
| Paper cup size(capacity) | 4.5.6.9.12.14.16OZ |
| Paper cup diameter | 50-80mm |
| Paper cup depth | 65-125mm |
| Paper weight | 130-350g/m2 |
| Paper cup material | Paper with one-sided coating or double-sided coating |
| Cup making speed | 40-50/min |
| Temperature control range | 0-400C |
| Electric heating power | 2.5kw |
| Main motor power | 1.5kw |
| Rolling motor power | 0.55kw |
| Power supply | 380 V /3P/50Hz or 220V/3P/50Hz |
| Whole machine weight | 1500kg |
| Overall dimension | 2650x1200x1500mm |
-
