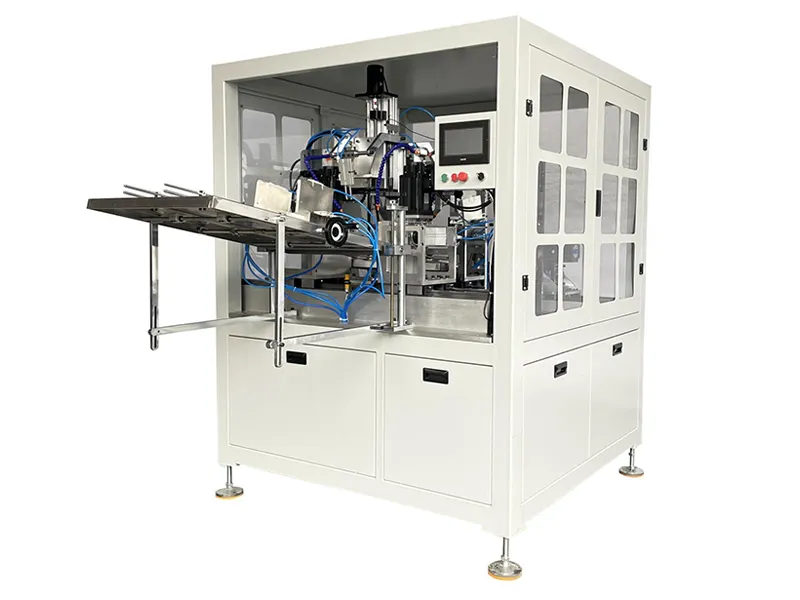

Double-End Paper Tube Curling and Cutting Machine, WT-SQ

The double-end paper tube curling and cutting machine integrates 360° edge curling and precise cutting. The double-end curling is followed by custom-length cutting without additional intermediate processes. The streamlined processes significantly improve paper canister production output.

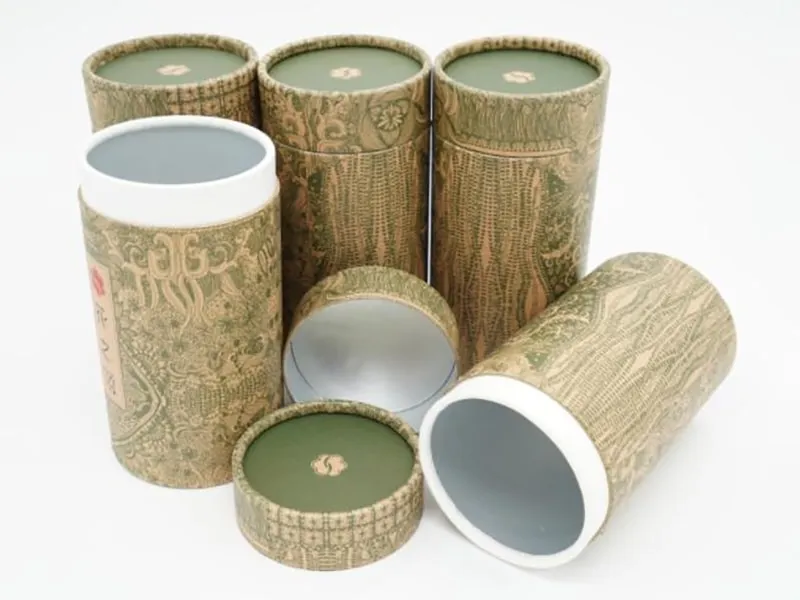

The double-end paper tube curling and cutting machine is suitable for producing paper canisters and tubes used for packaging tea, food, gifts, posters, and similar products.

• Integration of multiple processes: After material loading, the double-end paper tube curling and cutting machine automatically completes double-end curling, edge forming, and cut-to-length processing.
• High-quality rolled edge: The synchronized double-end curling gives the edges a smooth, crack-free and creaseless texture. The layers are intact and kept from separating by tightly curled edges. The products fit securely with sealing parts.
• Compatibility: With paper tube diameters ranging from 50 to 150mm, tube height before curling ranging from 110 to 450mm and compatible tube wall thickness ranging from 0.8mm to 1.5mm, the double-end paper tube curling and cutting machine is compatible with a wide range of products and easy to configure.

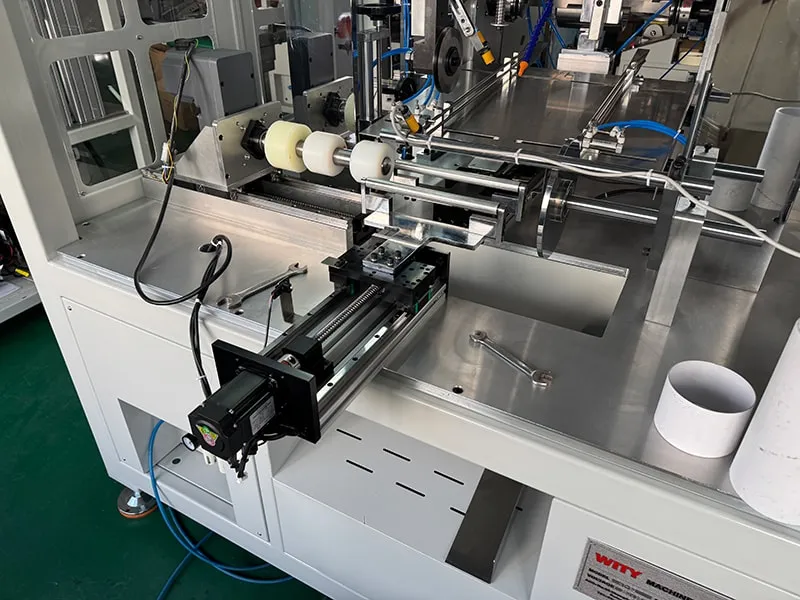

• Precision cutting: The PLC system and servo motors ensure precise cutting length with a cut-length tolerance of 0.3~0.5mm, while leaving the cut edges clean and smooth.

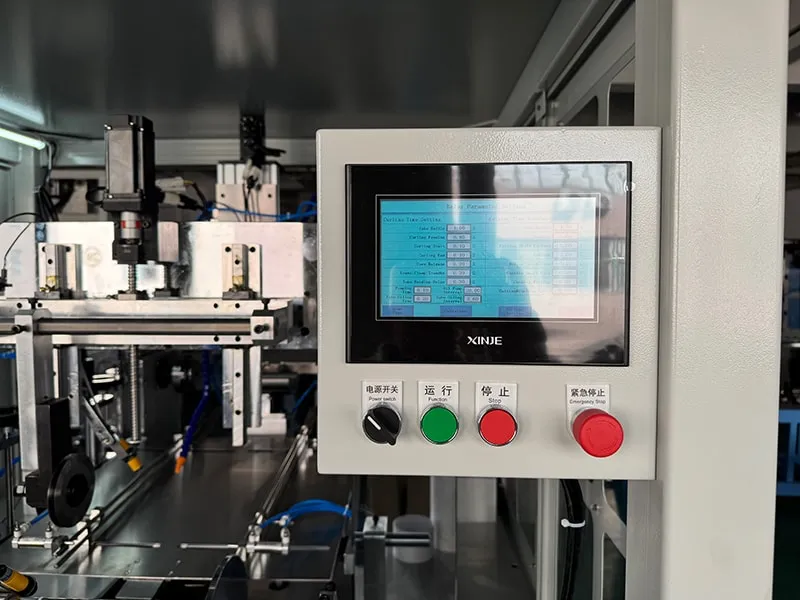

• Easy-to-operate: The PLC system and touchscreen HMI bring ease to operation. The configurations can be stored and recalled later and only one operator is needed who is only responsible for material loading and unloading.
• Safety: The enclosed guards, the built-in inspection window and the safety stop protection ensure operator safety.
• Reliability: The paper tube curling cutting machine weighs approximately 1 ton, and it is structurally designed for high stability and smooth operation. The pneumatic system brings more stability and is easy for maintenance.
• Production rate: The double-end paper tube curling and cutting machine can produce up to 1000 pieces per hour and is suitable for continuous operation.
