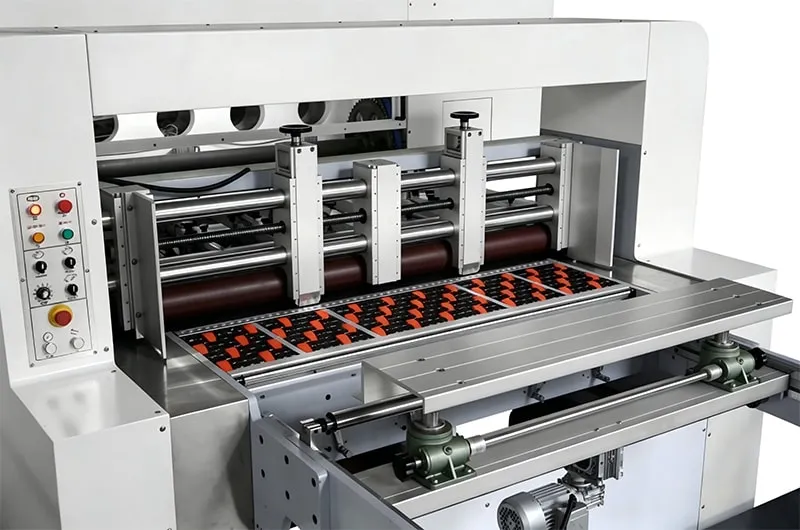

The integrated lead-edge feeding mechanism features high suction power and precise anti-slip feeding.
The supporting plate features anti-scratch protection design and can be connected to the feeder for in-line production.
Side guides support individual and synchronized positioning; the front guide supports multi-angle micro adjustments, which lessen the pressure on sheets and promote smooth feeding.
The height of supporting plate can be adjusted according to sheet material and thickness.

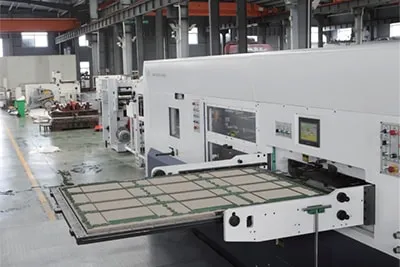

The high-precision die-cutting platen incorporates worm-gear crank mechanism and toggle-linkage mechanism, achieving reduced main machine power consumption by 16%.
The die-cutter is equipped with safety guard doors and pneumatic chase lock mechanism. The handwheel wedge mechanism supports micro pressure adjustment and digital display.
The original-design wide-angle, high-torque box-type cam indexing mechanism ensures smooth operation for gripper bars and prevents sheet separation. The overload torque protection is added.

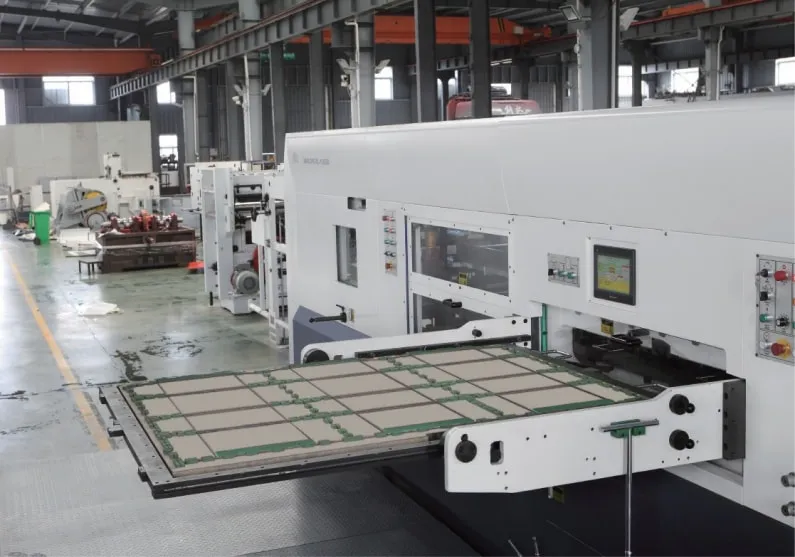

The cutting die is secured with T-nuts and screws and is mounted using central positioning system, ensuring precise and quick mounting.

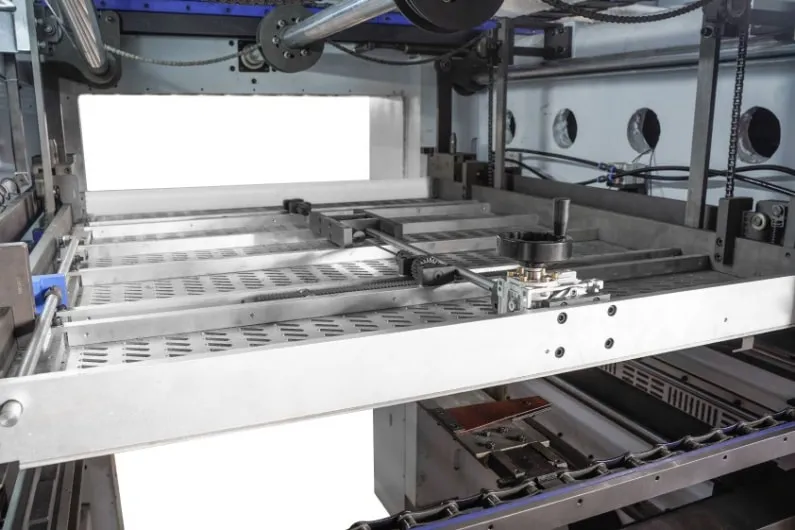

Fixed central stripping board, with dynamic upper stripping frame, simplified structure and strong instant impact power, ensures high-efficiency stripping.
The central positioning and locking system with quick-lock die mounting mechanism enables fast die changeover. The downstream stripping unit effectively removes paper waste, which is automatically ejected via conveyor.
The stripping unit features increased frame stroke, optimized motion, and ensures efficient stripping process.

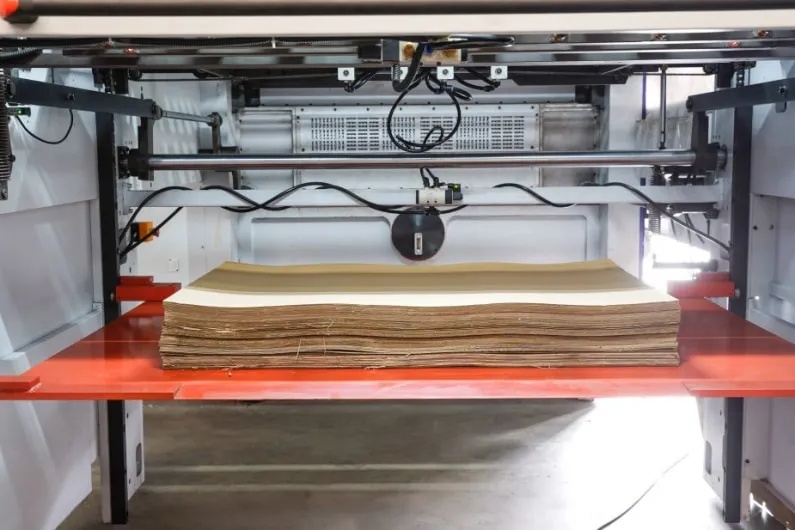

Two delivery modes are available: batch stacking and high-pile delivery, which can be selected based on downstream processes.

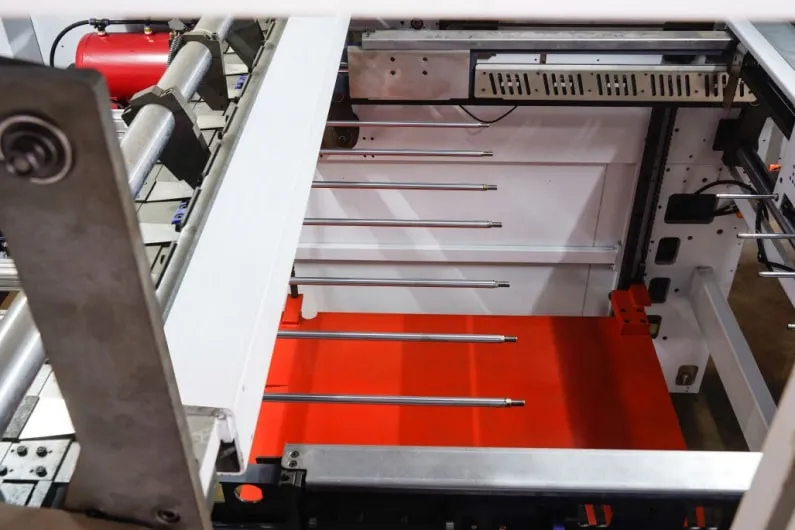

The dual-station non-stop rake system works with lifting delivery table for continuous operation.
The delivery system features counting function and outfeed belt conveyor and can be integrated with a sheet separator.
The delivery system incorporates cam-driven sheet jogging and supporting and supports multiple-up die cutting, ensuring optimal alignment. Motorized side guide adjustment is supported.

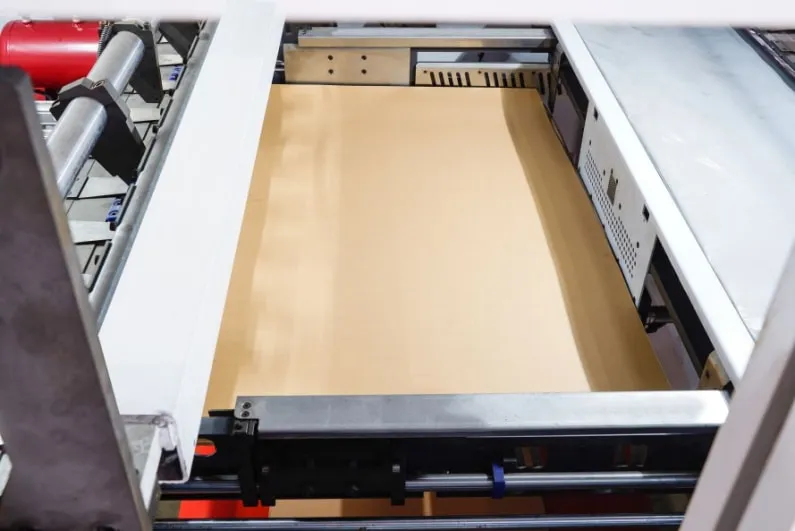

The automatic lifting stacking table enables bulk delivery.
The integrated digital counting function and cam mechanism ensures optimal alignment. A wide range of multiple-up layouts and motorized side guide adjustment are supported.
