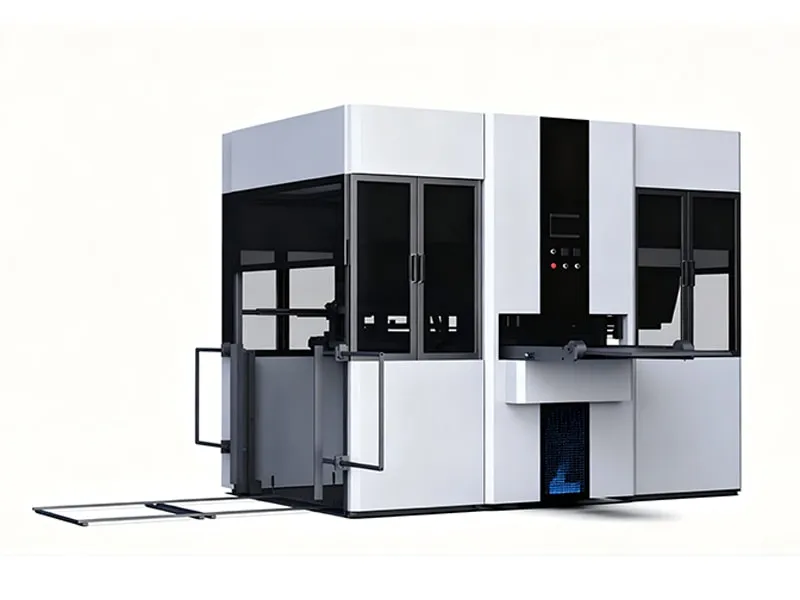

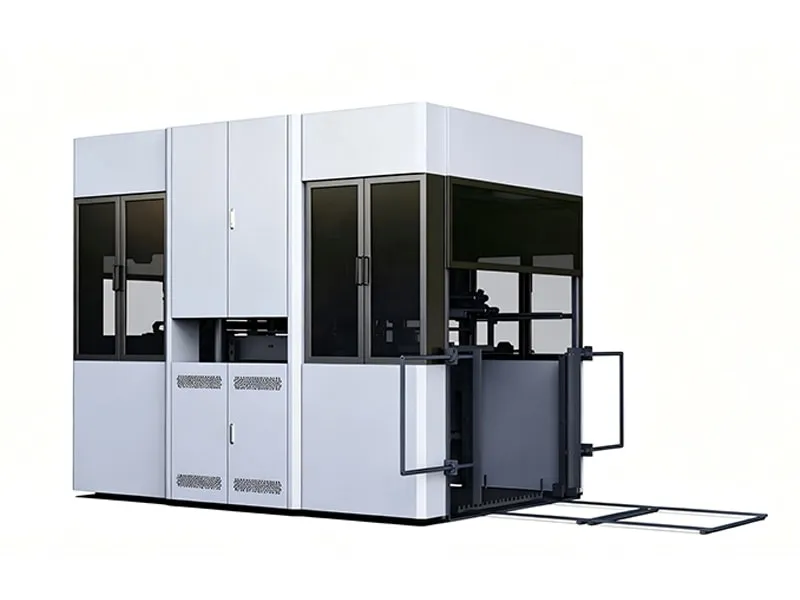

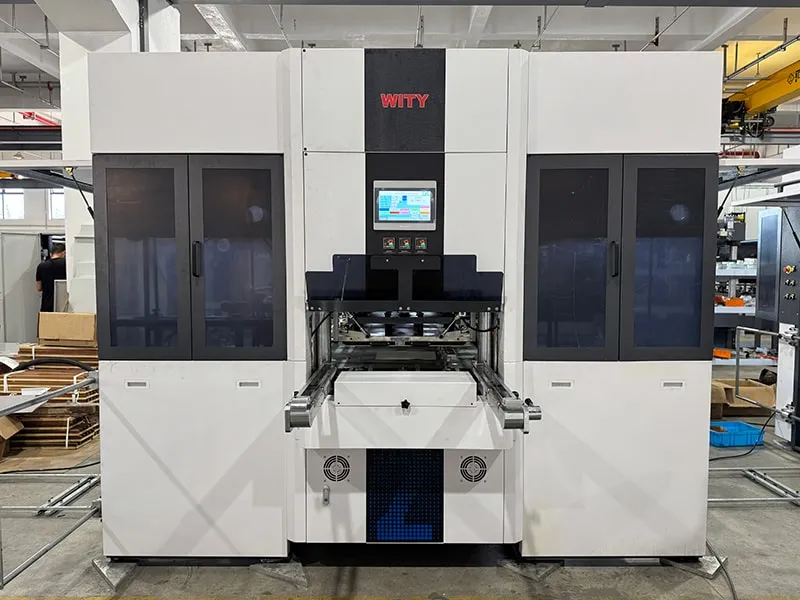

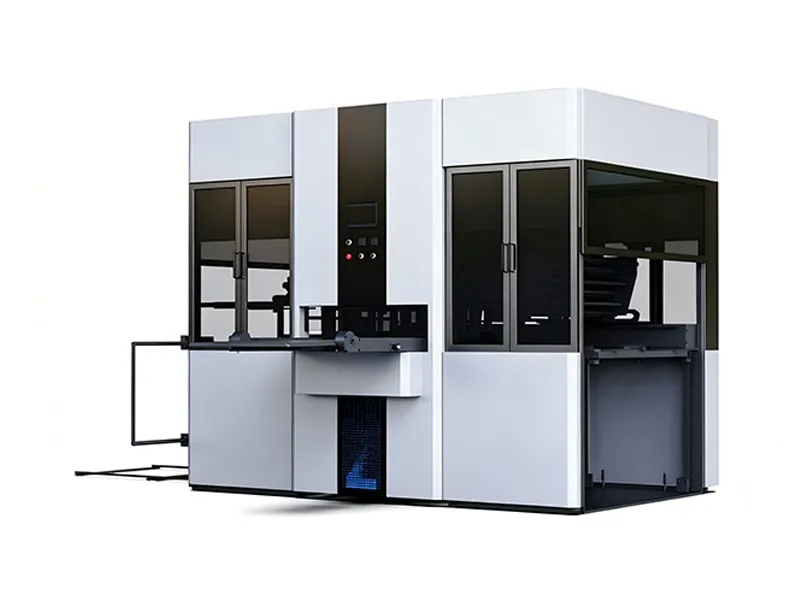

Automatic Foil Stamping Machine, TJ-930B/TJ-1060B

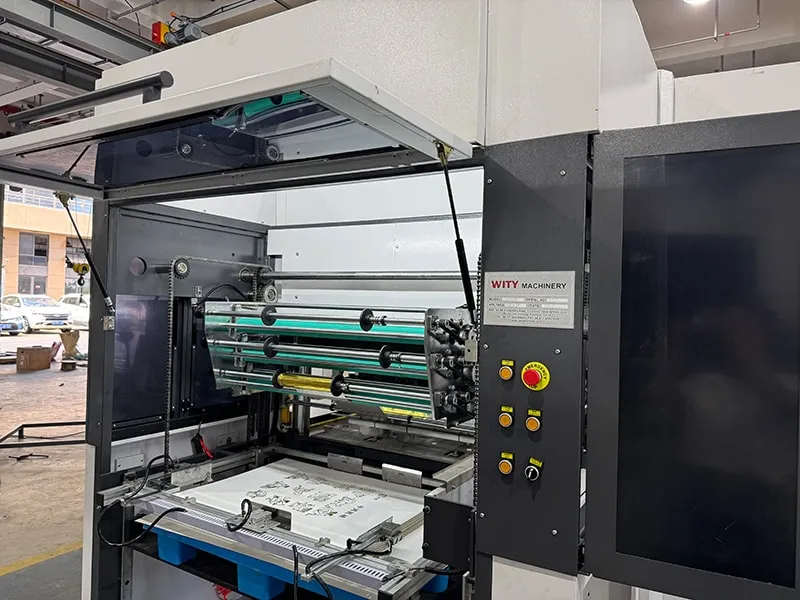

A standard automatic foil stamping machine comes with 3 sets of foil wind units to increase production efficiency and adapt multi-layer structured products. The centralized lubrication system reduces routine manual lubrication and supports stable machine operation.
The automatic foil stamping machine is suitable for a wide range of paper materials and other flat materials and can be used for applications like invitation cards, envelopes, and packaging boxes.
- The foil stamping machine features flexibly adjustable foil feeding and waste collection courses and optimized foil advance design, thus effectively saving foil material.
- The foil stamping machine adopts sheet pre-loading, saving downtime between feeding sessions and increasing changeover efficiency.
- The horizontal flatbed design provides an optimized operating stroke and more accurate registration.

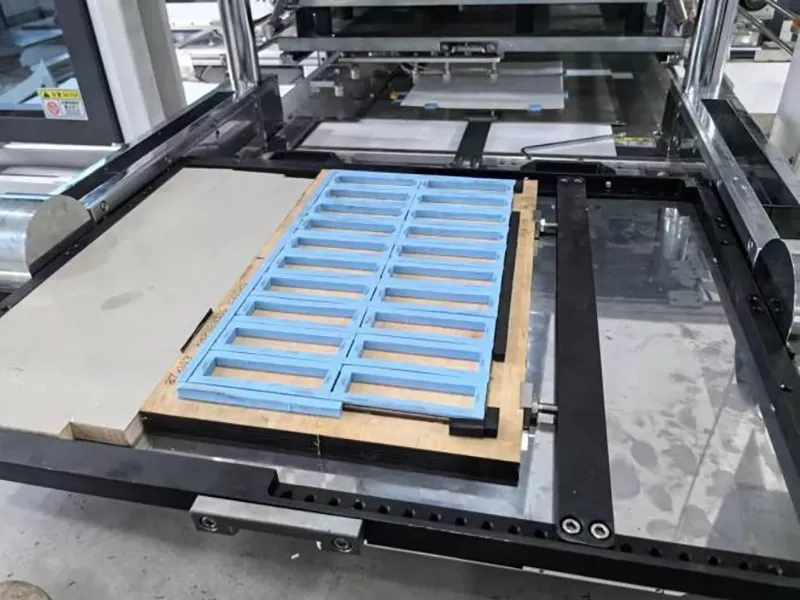

- The pull-out hot foil stamping plate features 180-degree rotation, significantly simplifying the mounting and positioning processes of stamping plate.
- The enclosed housing has safety protection function.
Samples
Technical Specifications
| Model | TJ-930B | TJ-1060B |
| Max. sheet size | 930 × 670 mm | 1,060 × 780 mm |
| Max. stamping area | 880 × 600 mm | 1,000 × 740 mm |
| Production speed | 1–25 cycles/min | 1–25 cycles/min |
| Max. pressing force | 70 t | 90 t |
| Max. feeder pile height | 500 mm | 500 mm |
| Max. delivery pile height | 500 mm | 500 mm |
| Compressed air requirement | 0.4–0.6 MPa | 0.4–0.6 MPa |
| Number of foil feeds | 3 | 3 |
| Main machine power | 7.5 kW | 18.5 kW |
| Total power | 15 kW | 20 kW |
| Machine weight | 5 t | 6 t |
| Heating temperature | 20–200°C | 20–200°C |
| Power supply | 380 V, 50 Hz | 380 V, 50 Hz |
| Overall dimensions | 2,950 × 2,050 × 2,350 mm | 3,100 × 2,200 × 2,350 mm |
Features

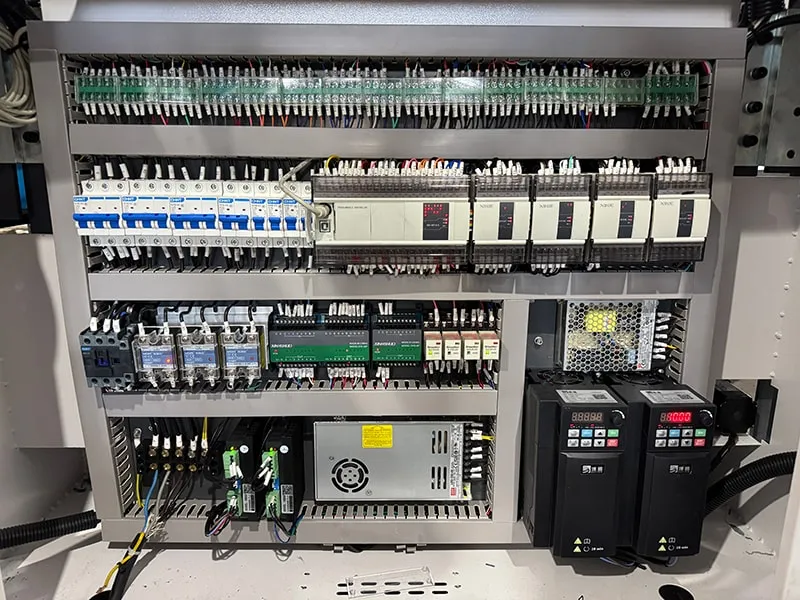

- PLC control system with only one operator needed
- Hot foil stamping can be controlled in terms of pressure, temperature and time.
- Feeding guide rail can adjust both horizontally and vertically.
- Plate lifting can be micro-controlled via touchscreen.
- Servo-driven sheet feeding and delivery can work with photoelectric sensors for registration and can be adjusted.
- Automatic feeding table lifting.
- Automatic foil stamping process.
- The safety protection function automatically stops the machine when access to a hazardous area is detected, helping protect operators.

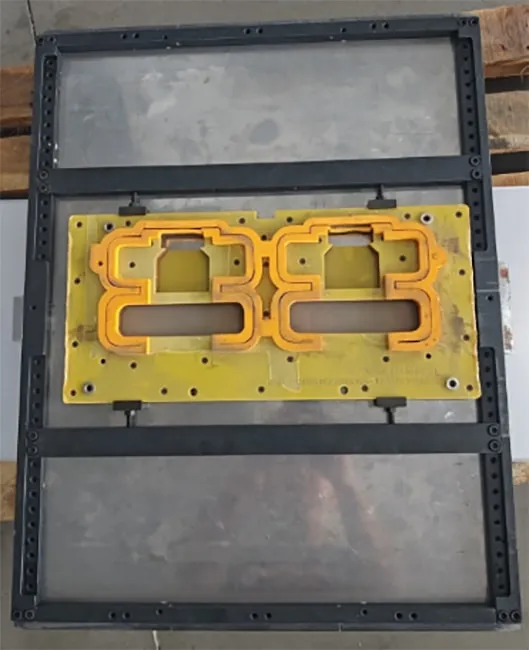

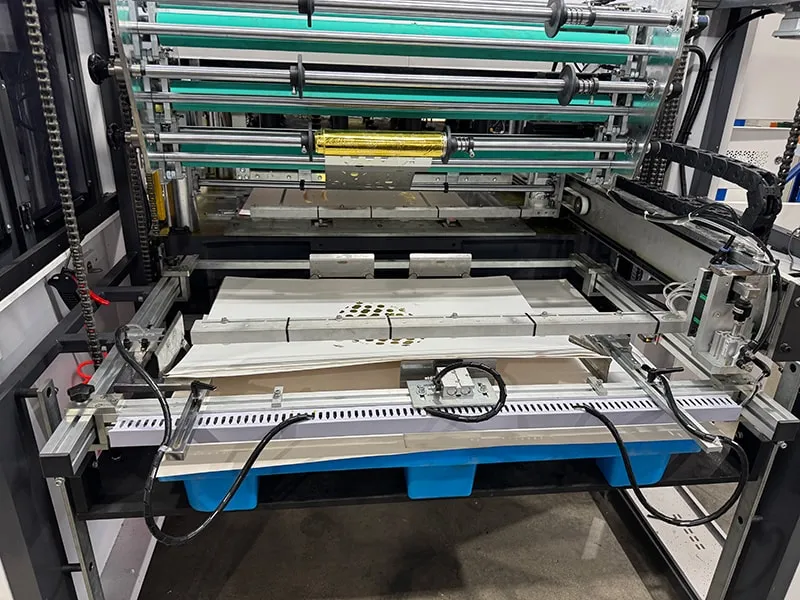

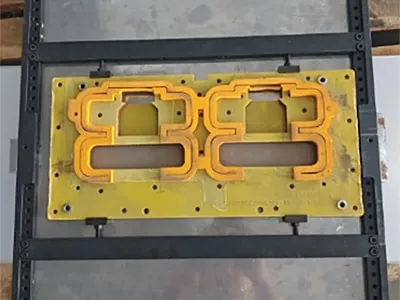

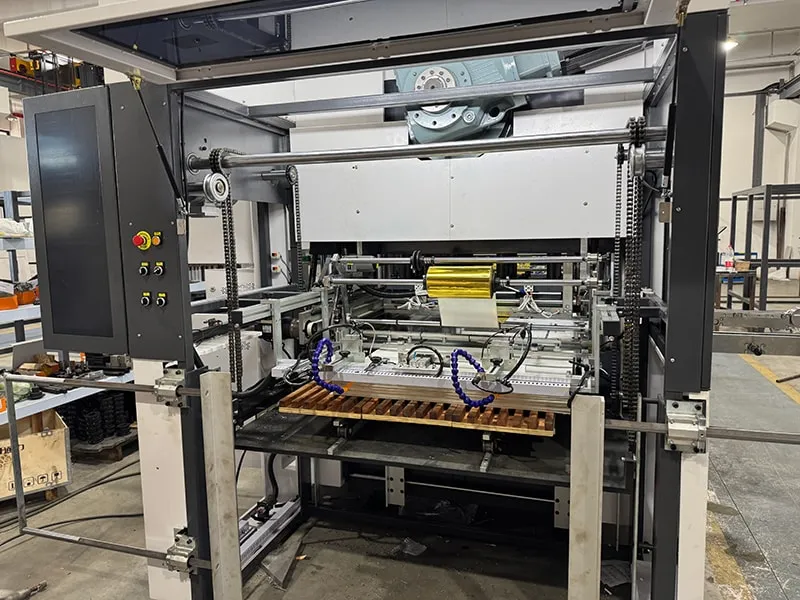

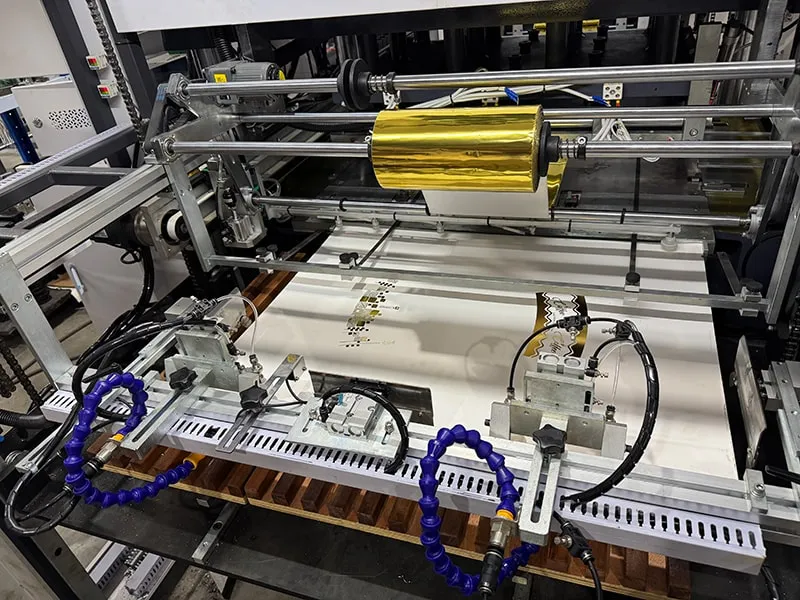

Components
-
