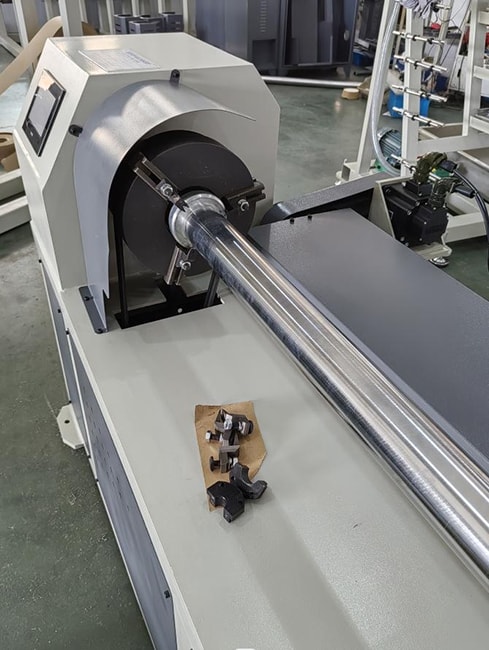

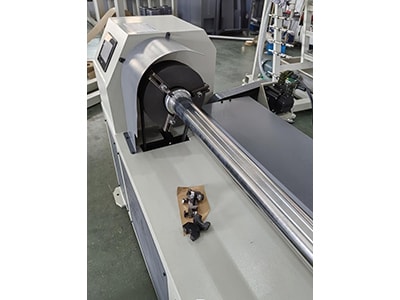

Paper Tube Cutting Machine, QG-1700
The paper core cutting machine is suitable for a wide range of paper core products such as textile cores, tape cores, film cores, and other industrial paper cores.
- The paper core cutting machine is integrated with PLC control system with the HMI touchscreen featuring simple settings.
- The cutting section is synchronized with servo control, achieving a cut-length error of no more than 0.15 mm.
- The automatic chuck locking ensures stable core mounting.
- The cut lengths range from 5mm to 1,700 mm and the core wall thicknesses range from 1mm to 20mm.
Technical Specifications
| Core inside diameter | 50–152 mm |
| Core wall thickness | 1–20 mm |
| Max. parent-core length | 1,740 mm |
| Cut length | 5–1,700 mm |
| Blade | Single tungsten-carbide blade |
| Cutting method | Pneumatic cutting; the core rotates while the blade feeds |
| Cutting rate | 1 cut/s |
| Cutter-carriage speed | 300 mm/s |
| Core clamping | Automatic chuck clamping |
| Loading / unloading | Manual |
| Speed control | Variable-frequency drive |
| Working air pressure | 0.6 MPa |
| Power supply | 380 V, 3-phase, 50 Hz |
| Operators required | 1 |
| Overall dimensions | 2,500 × 650 × 1,220 mm |
| Machine weight | 900 kg |
-
