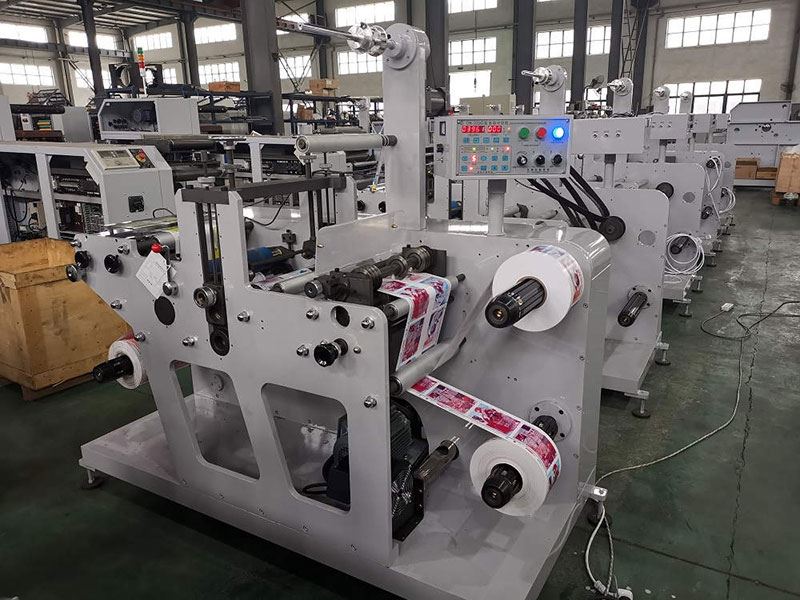

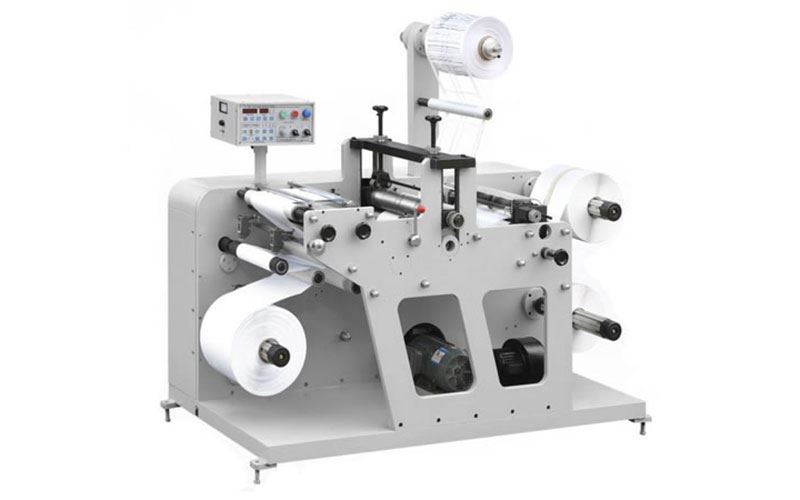

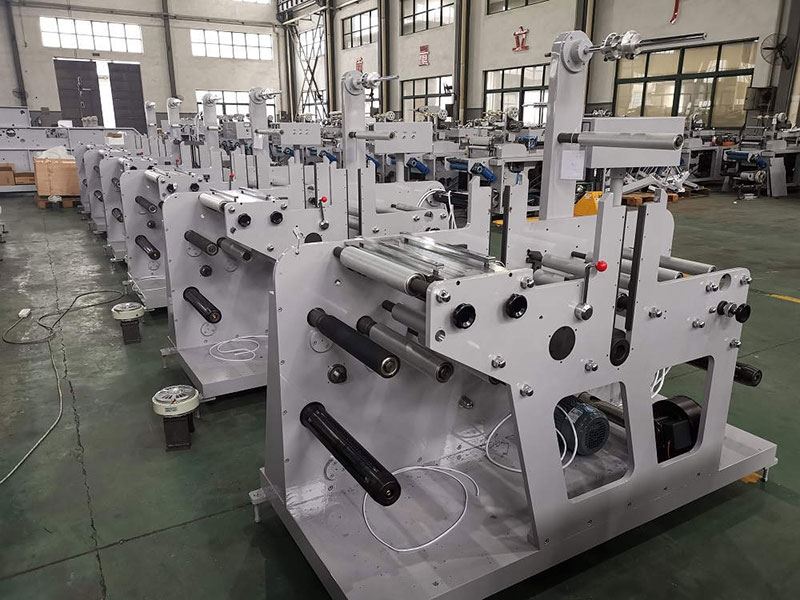

Label Slitting Machine with Rotary Die-cutting Station
Features
- DK-G label slitting machine is equipped with a high accurate rotary die-cutting system.
- It can finish die cutting, laminating (optional), and slitting at a stroke, and is ideal for processing blank adhesive labels.
- It has the function of automatic meter counting, automatic stop, and web guiding by photocell.
- The label slitting machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady operation, etc.
Specification
| Model | DK-320G |
DK-450G |
| Slitting speed | 75m/minute | 75m/minute |
| Die-cutting speed | 60m/minute | 60m/minute |
| Die-cutting repeat length | 177-476mm | 177-476mm |
| Max web width | 320mm | 450mm |
| Max unwinding diameter | 500mm | 500mm |
| Max rewinding diameter | 480mm | 480mm |
| Overall dimension | 1.6 ×0.9 ×1.3 m | 1.6 ×1.1 ×1.3 m |
| Voltage | 220v±10% | 220v±10% |
| Weight | About 600kg | About 650kg |
-
