Solventless Film Lamination Machine
This Solventless laminating machine is widely used for laminating film on film with solvent-less glue for flexible packaging industry. It produces laminated films for producing pouches or other packages, specifically for food package, as it uses solvent free glue for laminating, which is environment friendly.

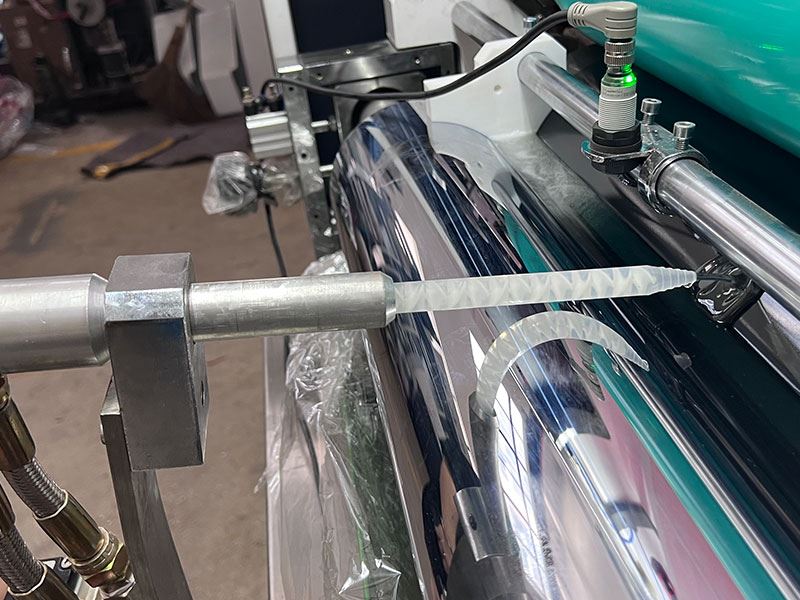

The machine has the advantages of high automation, simple operation, high production efficiency and low waste rate. This machine is made up of rolling unit, five roller coating unit, preheating unit, compound unit, winding unit, electrical system, EMC system and automatic glue dispensing system.
Features
- EMC profit control system, with quick analysis and alarm of quality factors, which can analyze historical quality information
- Mico-gap clearance precise positioning system
- Coating weight constant monitoring system
- Material width positioning system
- SSPI Smart shaft-less plate-cylinder installation
- FCS Fast cleaning system
- Solvent-less coating compound, left side is coating, the right side is laminating
Specification
| Model | WJ1100 | WJ1300 | WJ1500 |
| Max width（mm） | 1150 | 1350 | 1550 |
| The diameter of unwinder（mm） | 800 | 800 | 800 |
| The diameter of rewinder（mm） | 1000 | 1000 | 1000 |
| Model Temperature Controller（sets） | 3 | 3 | 3 |
| Weight（KG） | 12600 | 13500 | 15500 |
| Overall dimensions（mm） | 6000*3200*3000 | 6000*3400*3000 | 6000*3600*3000 |
| Mechanical rated speed M/min | 400 | 400 | 350 |
-
-
