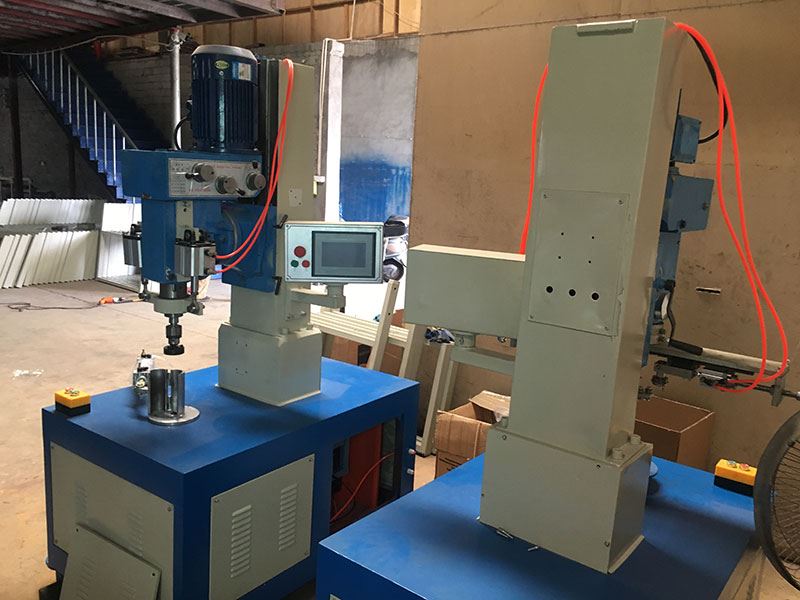

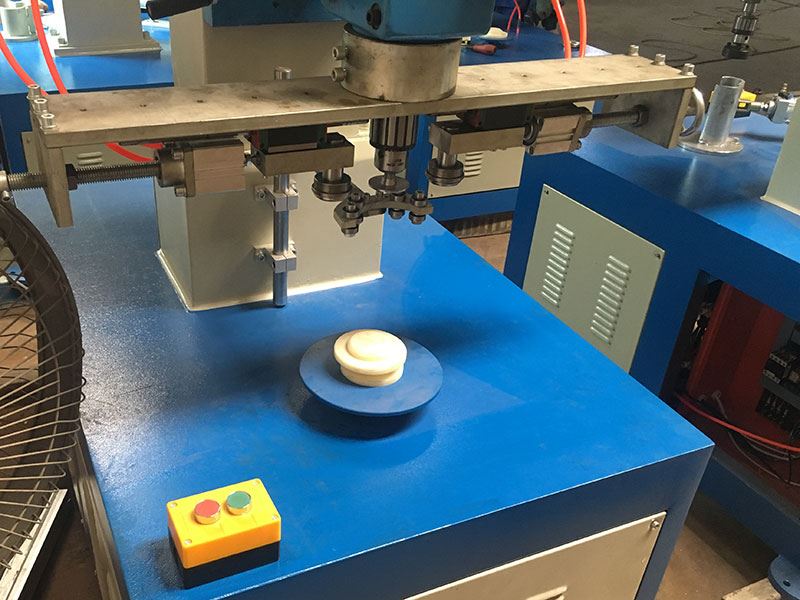

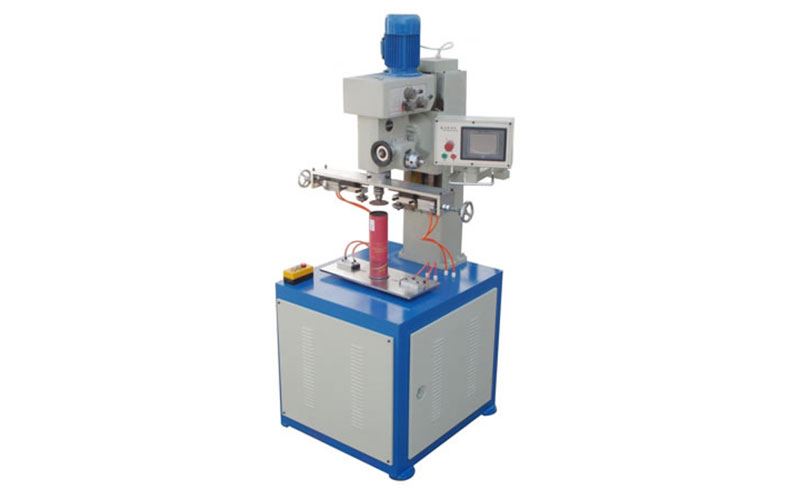

Paper Tube Curling and Sealing Machine, CS400

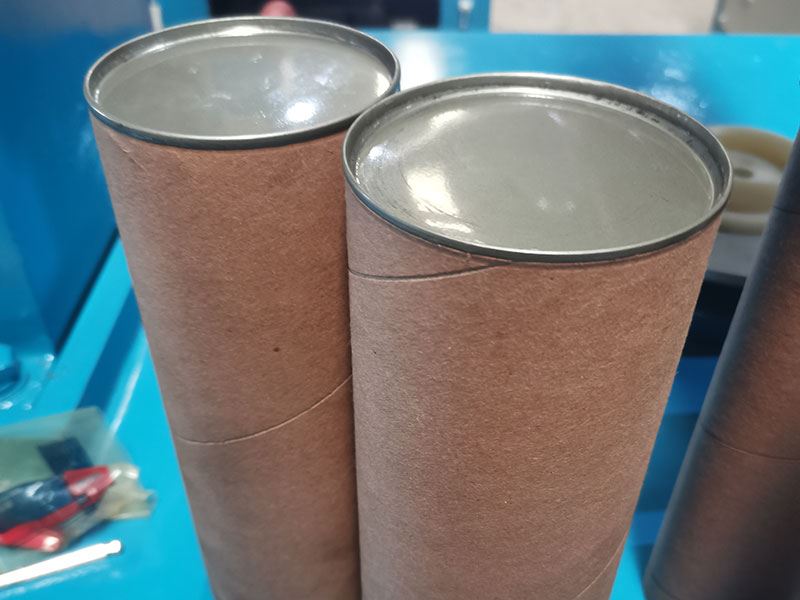

The paper tube curling and sealing machine CS400 is applied to paper covers for composite cans, calendars cans, tea cans, wine cans, tin covered composite cans, cardboard box curling and edge cover.
Features
- Low cost, high practicability, and stable performance.
- The paper tube forming equipment supports automatic cutting and unloading. The cutting speed will change and restore, automatically.
- PLC control system and touch screen HMI bring more convenience to the users during operation.
- The circular cutting knife for the automatic paper tube machinery enables smooth cutting edge and stable performance of the paper tube curling and sealing machine.
- For good durability, we particularly manufacture the paper tube curling machine with stainless steel glue feeding unit, PU cutter and high-carbon steel carton cutter.
- This paper tube sealing equipment supports automatic gelatinizing.
Specification
| Tube diameter | 20-400mm |
| Tube wall-thickness | 1-5mm |
| Tube length | 20-500mm |
| Air pressure | 0.2-0.6MPa |
| Main motor | 2.2kW |
| Touch screen | MCGS |
| PLC | Delta |
| Working speed | 10-20pcs/min |
| Operating mode | Manual feeding |
| Overall dimension | 800×900×2000mm |
| Weight | 800kg |
-
