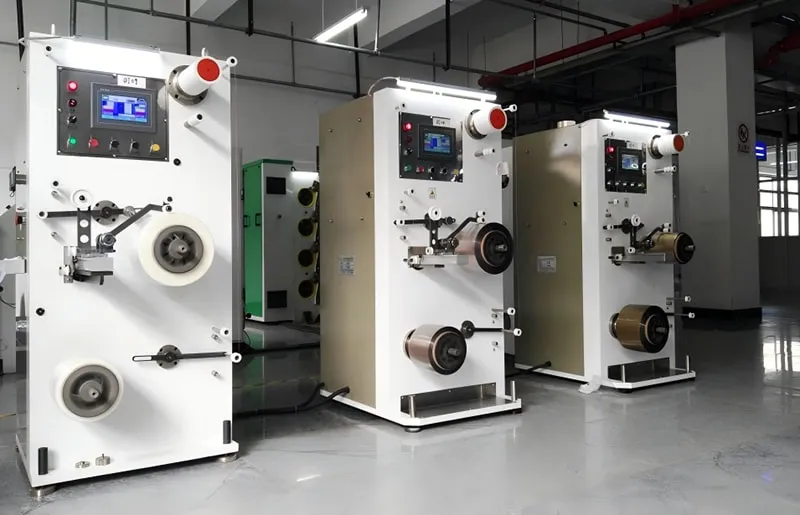

Tear Tape Traverse Rewinding Machine, LFJ-100

Automatic Hot Stamping Machine, TJ-200
  • Automatic Hot Stamping Machine, TJ-200
  • Automatic Hot Stamping Machine, TJ-200

The tear tape traverse winding machine supports tear tape rewinding of 10,000m, 50,000 m and 100,000 m lengths.

The configurations includes: 10,000 m to 10,000 m, 10,000 m to 50,000 m, 10,000 m to 100,000 m, 50,000 m to 10,000 m, 50,000 m to 50,000 m, and 100,000 m to 100,000 m.

Request a Quote
Technical Specifications
Overall
Compatible materials BOPP, PET, OPE, and PVC film, 0.025–0.050 mm thick
Rewinding widths 1.6 / 2.0 / 2.5 / 3.0 / 4.0 mm
Power supply 220 V, single-phase, 50 Hz
Total installed power Approx. 3 kW
Overall dimensions 0.8 × 1.2 × 1.7 m
Unwinding Section
Guide rollers All guide rollers have non-stick surfaces to prevent the adhesive side from sticking or pulling during rewinding
Unwind servo One 0.75 kW Inovance servo motor and drive
Rewinding Section
Production speed Process speed: 50–300 m/min;
maximum mechanical speed: 400 m/min;
touchscreen adjustable
Tension control Servo drive, aluminum-alloy dancer arm, and traction roller
Core and wound-package dimensions 10,000 m tear tape:
plastic core with Ø30 mm inside diameter,
100 mm core width,
maximum package diameter Ø140 mm,
and 85 mm wound-package width

100,000 m cigarette tear tape:
paper core Ø152 × Ø170 mm (inside × outside diameter),
185 mm core width,
maximum package diameter Ø380 mm,
and 155 or 160 mm wound-package width
Core locking Plastic core: locating sleeve, sealing ring, and knurled expansion screw.
Paper core: aluminum-alloy cone and knurled clamping screw
Winding method Flangeless level winding with guide-controlled package profile (and energy-saving white work light)
Servo drives Two 0.1 kW dancer drives, one 0.1 kW traverse drive,
one 0.4 kW traction drive, and one 0.75 kW winding drive; all Inovance
Control functions Central PLC control and servo reciprocating traverse unit;
touchscreen-adjustable traverse pitch and overlap angle;
recipe storage and one-touch process changeover
Electrical system Inovance servo system and PLC with one 7-inch MCGS HMI
